TOWER
Vertical line array concert speaker column
VERTICAL ARRAY
The TOWER™ is a complex, huge (!) Vertical line array concert speaker column. The basic idea is a new design creation, which into only one box, unites multiple professional hanging front line array sound system’s basic services. Services such as: high sound pressure, high radiation distance, mechanically adjustable angles, uniform coverage, cardioid polar characteristics, low harmonic distortion, multi-channel operation.
At the same time, the TOWER™ offers the practicality of small standing constructions, the sound column can be easily adjusted from a horizontal position to vertical with a hinged base plate. This allows even one person to install a 40kW professional speaker system easily and in a matter of seconds! The TOWER™ sound system with TOWER™ SUB subwoofer section can be configured from 10kW to 80kW.
EXPERT IN CONCERTS
Buda Acoustic has its own registered patent, which’s essential element is a precise mechanism for adjusting the tweeters built into the sound box. With the help of it, the medium and high frequency vertical radiation can be adjusted according to the acoustic conditions of a theater, concert hall, sports hall or outdoor venue.
Distortion-free, crystal-clear sound is provided by a selection of high-quality components, best-in-class speakers available on the world market, high-quality Teflon-clad silver cables and a high-end power amplifier system. The sound box is made of multi-stiffened, circularly tapped constructions made of plywood by CNC process. In result the system perfectly conveys the artist’s emotions!
AFFORDABLE
TOWER™‘s very affordable price is due to its innovative design. Moreover, it also has low maintenance thanks to that the sound system requires minimal human resources and has small space requirements. Practical: the installation of the system is quick, easy and simple, independent of other stage elements: it does not require any scaffolding structure or motorized lifting device, there is no need to rely on the equipment used for stage lighting, the system can be dismantled in a short time after a concert.
The TOWER™ offers its users a new kind of operating freedom: the entire production is cost-effective, the lighting and stage technology can bring smaller, lighter devices. The TOWER™ offers an extremely short payback period for cultural institutions and theatres and is ideal to use with new wireless digital mixing consoles.
Why TOWER?
No need to use – usually cross – linked, aluminium – scaffolding. ● You do not need to lift the speaker column, the box itself so tall that when it is placed on stage or on the ground with a subwoofer under, it can perform concert quality sound. ● The TOWER™ is using an external mounting bracket to its destination set up, so it can be operated safely. ● TOWER™ tweeter funnels are very easy to adjust. ● The sleek and tall body of the TOWER™ looks elegant on historical walls operated as an installed sound system, can be fitted harmoniously into the environment. ● The TOWER™ can be set up simply and only using a short cable.
Specifications:
MAXIMUM SPL HF: 137 dB cont., LF: 137 dB cont. Calculated
DRIVERS: 8 × 8” LF driver (2,5” voice coil, 250 / 500 W ) 4 × 1” exit HF compression driver (1,75” voice coil, 60 / 120 W) with 4x line array waveguide. 2 x 18” subwoofer driver
SENSITIV HF: 116 dB 2,83 V/Ch@1m – calculated SUB: 106 dB 2, 83 V/Ch@1m 4 Pi, calculated
FREQUENCY RESPONSE:
80 Hz-18.000 Hz (+-3 dB) with subwoofer 33 Hz- 100 Hz
NOMINAL IMPEDANCE: HF: 3 × 16 Ohm LF: 2 × 8 Ohm SUB: 2 x 8 Ohm
DISPERSION: (-6 dB) Horizontal: 90°, Vertical: 50° -+10° (-6 dB, 2 kHz...10 kHz)
CONNECTORS: (NL4 Neutrik, and NL8 Neutrik)
RATED POWER LF: 2.000 W AES standard. HF 240W AES standard. LF: 2 × 1400W into 2 × 8 Ohms, per side
RECOMMENDED AMPLIFIER: LAB Gruppen PLM 12K44
CROSSOVER: Active cross by LAB Digital Signal Processors
DIMENSIONS:
WEIGHT 270 mm (W) × 2500 mm (H) × 350 mm (D) cca. 120 kg
FINISH ENCLOSURE: Textured polyuretan hard pant
FITTINGS: BUDALOGIC safety mechanism on a subwoofer box
HIGH TECH
Buda Acoustic has its own registered patent, which’s essential element is a precise mechanism for adjusting the tweeters built into the sound box. With the help of it, the medium and high frequency vertical radiation can be adjusted according to the acoustic conditions of a theater, concert hall, sports hall or outdoor venue. Distortion-free, crystal-clear sound is provided by a selection of high-quality components, best-in-class speakers available on the world market, high-quality Teflon-clad silver cables and phase balanced line array Waveguide. The sound box is made of multi-stiffened, circularly tapped constructions made of plywood by CNC process.

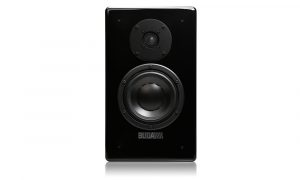

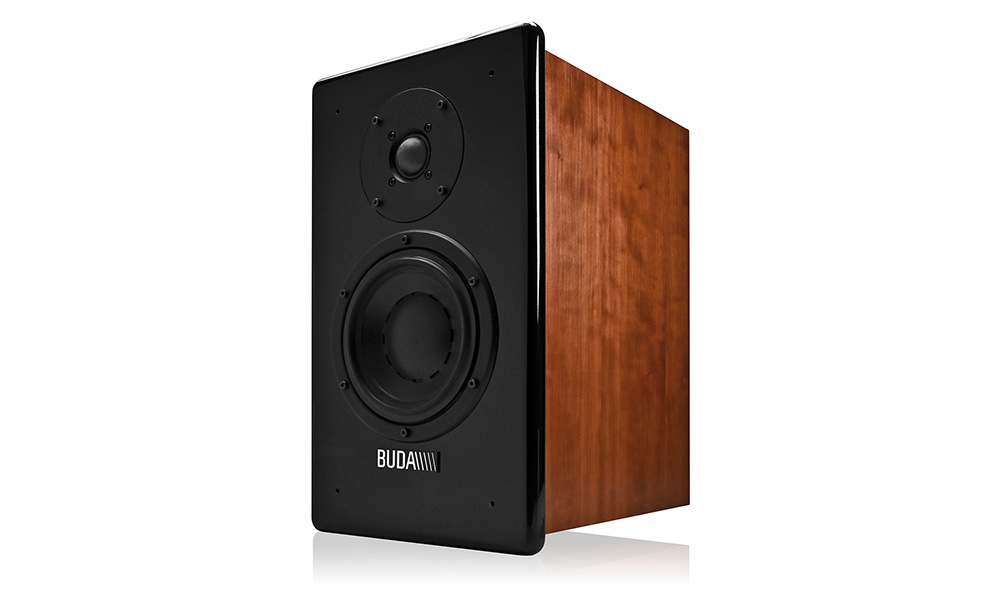

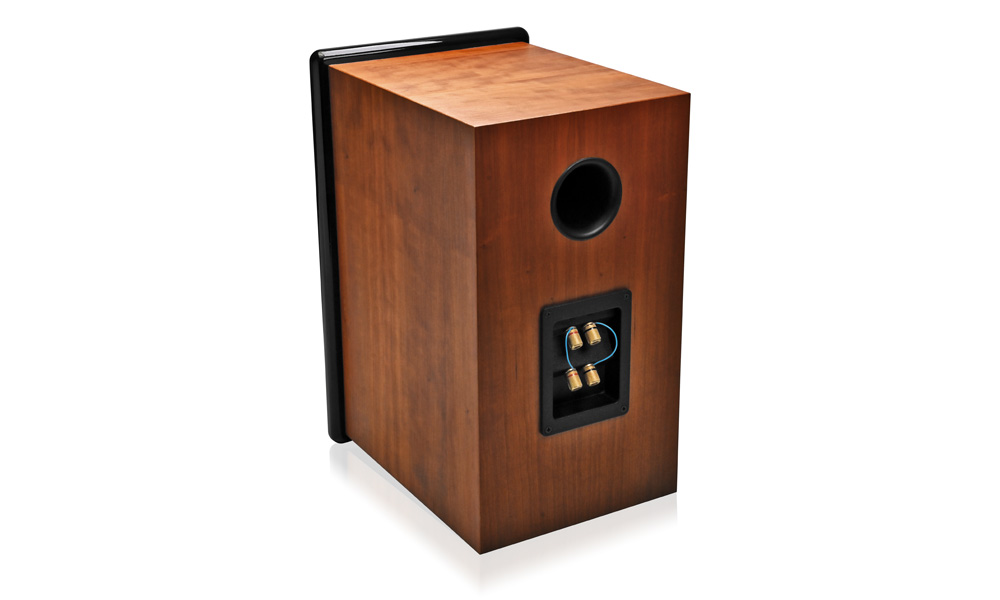

M6
Nearfield Studio Monitor
This two-way, 6” special studio monitor has been developed for the highest demands. Graphite-injected polypropylene, a cooled magnetic circuit woofer (75mm Aluminum voice coil) and a special quality soft dome are installed in the extreme solid box together with the highest category electronic components.
This near-field studio monitor guarantees hyper-high sound reproduction and perfect analysis for uncompromised listening. All this is greatly aided by the BUDA Acoustic Laboratory’s self-developed amplifier, which guarantees ultra-high-quality transmission.
Specifications:
Type: passive two-way near field monitor
Frequency response: 40 Hz-22 kHz (0, -3 dB)
Rated power: 150 W (1000W peak @ 1 ms)
Impedance: Dimensions: 270 x 380 x 320 mm (W x H x D)
Weight: 7.2 kg
B12
Compact two-way speaker
Real sound reproduction has been condensed into this compact two-way speaker. The high-sensitivity 12” dynamic subwoofer and the 3” Aluminium Dome, soft polyester suspension compression tweeter (with 1.4 ”throat-opening Constans Directivity funnel) are in an acoustically optimized and a rugged box.
The system comes with an integrated digital sound processor and with various presets by default. In addition to the compact speakers, the 1×18” or 2×18” subwoofers tuned to them can also be set up, but if production or circumstances require it, it can be used without a subwoofer, selecting the appropriate preset. The boxes can be expanded horizontally, and the system can be expanded with a delay radiating system, all of which is supported by the processor. B12 is primarily optimal for demanding club concerts, high-quality theatres, acoustic, unplugged, jazz, pop, folk and especially high-quality productions.
We recommend using it where distance and audience do not justify the need of a line array, but you want to achieve the best in terms of quality and resolution. Alternatively, B12 can be used within a larger system in sidefield and downfield formations, as well as a specialquality drum and foot monitor. The box can be used directly on stage -stood on top of a subwoofer- on a 35mm tripod bar, or with multi-point rigging and fixed installation.
Specifications:
Coverage: 60 x 40 degree (horizontal x vertical)
Linear SPL: 126 dB (wideband, pink noise@1m)
Frequency Response: 70 Hz.....18 kHz (-3 dB)
Operating Frequency Range: 63 Hz.....20 kHz (-10 dB)
Transducer low: 1 x 12” cone driver reflex loaded 700W A.E.S., 2400 W peak
Transducer high: 3” Aluminium diaphragm compression driver 80W A.E.S
Enclosure: Premium multi-ply 21 mm with slightly textured black finish
Grille: Powder-coated, hex-stamped steel with black mesh
Weight: 40 kg
Dimensions: 370 x 762 x 403 mm
S18
1× 18" subwoofer
The Tower’s small subwoofer creates crystal clear low frequency components. This specially designed 1× 18′′ subwoofer system delivers 135dB SPL of sound pressure at 1400W AES and 5,000W of program power. Tower S18 SUB’s special design ensures safe installation of the Tower column. With the help of a hinged base plate construction, that can be easily adjusted to vertical position by fitting it to the SUB.
Specifications:
Frequency Range: (-10 dB) 32 - 100 Hz
Weatherized: No
Speaker Type: Subwoofer
Frequency Response: (-3 dB) 35 - 120 Hz
LF Nominal Impedance: 8 Ω
Max. SPL/1m: (calc) 135 dB
Coverage: (Nominal -6 dB) H 360°
LF Transducer: 18-in (Beyma PW1400FE)
System Power Handling: 1400 Watts
LF Power Handling: 1400 W continuous, 5000 W peakWatts (50-100 Hz)
Enclosure Material: Birch plywood, textured epoxy paint
Grille: Powder-coated steel
Available: Color Black
Sensitivity: 1 W/1 m 99 dB (Half Space)
Recommended High-Pass Frequency: 35 Hz
Height: 554 mm
Width: 620 mm
Depth: 760 mm
Weight Net: 58 kg
Environmental Specs: IEC 529 IP24
Passive Power Handling: 5000 W peak
Chassis Size: 18"
Peak SPL @ 10m: 126 dB (Half Space)
S218
2 × 18" subwoofer
One can say, the Tower’s large subwoofer is a ’big gun’. This specially designed 2× 18′′ subwoofer system delivers 138dB SPL of sound pressure at 2x1400W AES and 2×5,000W of program power. Tower S218 SUB’s special design ensures safe installation of the Tower column. With the help of a hinged base plate construction, that can be easily adjusted to the vertical position by fitting it to the SUB.
AUDIOPHILE SOUND
The designers of Buda Acoustic are not satisfied with the average sound quality. The sound quality of the Subok is provided not only by the speaker or by the amplifier, but mainly by the rock-solid cabin. The sound box is made of 21mm plywood, with circular edge tapping, CNC machining machines, multiple internal stiffening modules. Which create an extra stable and solid cabin, so the clear, undistorted and ultra-fast bass sounds can come alive with high sound pressure and excellent impulse response.
RIGGABLE, UP TO 100KW
All elements of the Tower sound system can be rigged at will. The Tower S218 SUB’s internal hardware and standard rigging rails allow you to lift the sub boxes in case it gets in the way on stage. The Subs can be stalled on top of each other thanks to the roof and bottom plates of the sound boxes, that were made with precision positioning milling. Also, the wear-resistant, structured polyurethane-based cover layer on the cabin surface ensures the durability of the structure.
The complete sound system with Tower SUB subwoofers can be set up to 100,000W AES. The sound image can be modified by DSP-controlled, big-name German power amplifiers, bringing the whole sound image up to the level of the world’s leading systems.
Specifications:
Frequency Range: (-10 dB) 30 - 100 Hz
Weatherized: No
Speaker Type: Subwoofer
Frequency Response: (-3 dB) 35 - 120 Hz
LF Nominal Impedance: 4Ω
Max. SPL/1m: (calc) 141 dB
Coverage: (Nominal -6 dB) H 360°
Coverage: (Nominal -6 dB) 360°
LF Transducer: 2 x 18-in (Beyma PW1400FE)
System Power Handling: 2 x 1400 Watts
LF Power Handling:
2800 W continuous, 10 000 W peakWatts (50-100 Hz)
Enclosure Material: Birch plywood, textured epoxy paint
Grille: Powder-coated steel
Available Color: Black
Sensitivity: 1 W/1 m 103dB (Half Space)
Recommended High-Pass Frequency: 34 Hz
Height: 554 mm
Width: 1144 mm
Depth: 760 mm
Weight: Net 102 kg
Environmental Specs: IEC 529 IP24
Passive Power Handling: 10 000W peak
Input Connections: 2 Neutrik® NL4
Chassis Size: 18"
Peak SPL @ 10m: 130 dB (Half Space)
MODULAR
SYSTEM
Buda Acoustic’s latest model-family is a hanging, modular system that can be configured in any installation, from theatres and sports halls to the largest outdoor festivals.
The high-performance live and touring speaker system can be assembled in several variations and can be angled in different degrees according to the needs of the broadcast. The special feature of the design is an interchangeable suspension system, which allows the sub and tops to be pushed under or next to each other, so that the entire system can be assembled up to 100kW.
The design and shape of the BUDA Acoustic line array system is traditional and functional. All its elements ensure practicality, perfect sound and an accurate directional radiation pattern. Sound quality is guaranteed by top-quality speakers, silver cables, extremely rigid body and high-end electronics.

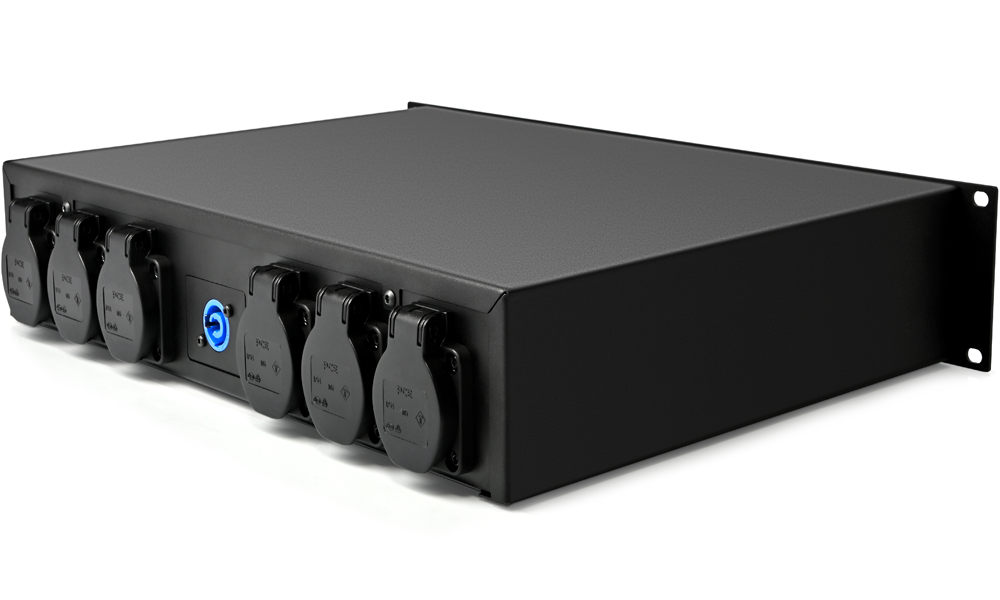

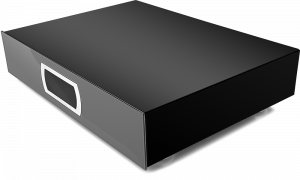

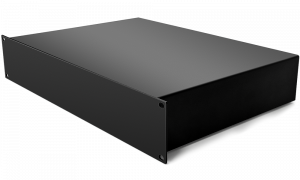

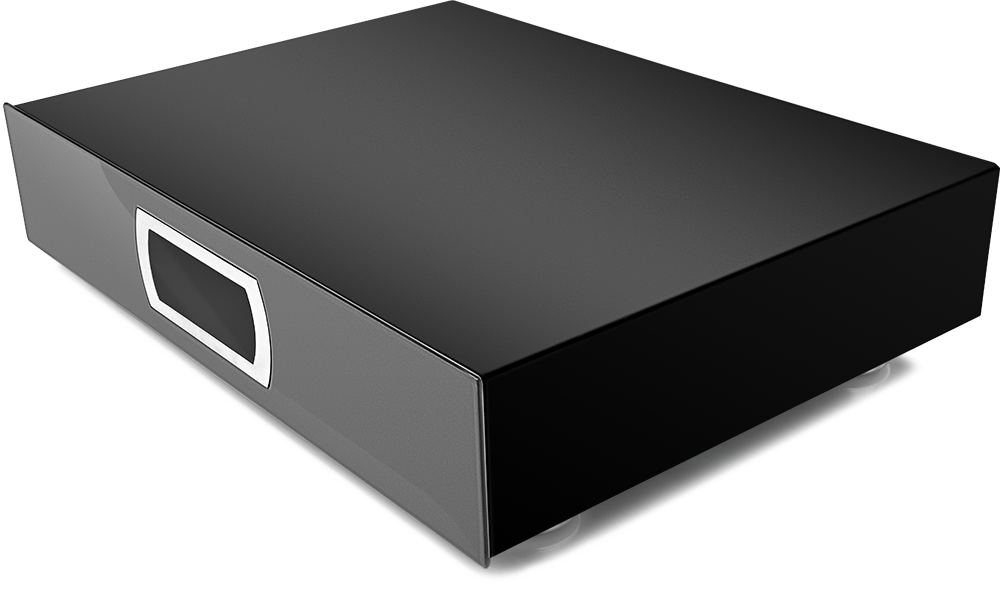

SIENUS
Power distributor and filter
SIENUS is a special self-developed power distributor and filter of BUDA Acoustic Laboratory. By using it, sound comes alive, the compressed space widens as if a veil was removed from the way. It is a real magic box. It also enhances the sound of the most expensive sound chains. This is not a dream, but a system developed and manufactured along scientific-, wave-, and electro-acoustic researches on effects.
Specifications:
Input mains voltage: 160 - 240 V RMS 50 - 60 Hz
Load input capacity continuous: 20 A RMS by PowerCon connector
Load output capacity continuous: 16 A RMS anyone connector
Input to output resistance: <0,02O hm
Continuous electric consumption: 0,25 W (2,2 kWh/year)
Number of outlets: 6
External dimensions: 432 x 275 x 100 mm
Mains inlet: IEC14 made by Furutech or Original Neutrik PowerCon 20 A
Mains outlets: dust proofed industrial design made by PCE/Germany
Non-traditional inner structure
No dynamics compression feeling
Special cabling
Now level resolution improvement
Astonishing sound quality improvement for all high end audio, hifi and lo-fi equipment
Warranty: 5 years with the exception of mechanical damage
Electronic Components
BUDA Acoustic Laboratory installs its large-format sound systems exclusively with LAB Gruppen’s top-class power amplifiers and signal processors. We offer our line array and other sound systems with these amplifiers. Below are the corresponding models from LAB Gruppen that can be integrated into BUDA Acoustic systems. We use and offer for sale our own developed and manufactured amplifiers for our Studio and high-end HI-FI devices.
PLM 12K44 BP
12,000 Watt Amplifier with 4 Flexible Output Channels on Binding Post Connectors, Lake Digital Signal Processing and Digital Audio Networking for Touring Applications
The PLM 12K44 Combines a 4-in, 4-out Configuration with Industry-standard Dante Networking, Setting the Benchmark for Powered Loudspeaker Management Systems.
The PLM 12K44 is the natural successor of the proven, road tested, and trusted LAB GRUPPEN touring foundation exemplified by the iconic PLM series, but with an additional new powerful feature set: the ability to rationalize power allocation between channels to optimize performance. Now packaged in an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 LAKE Controller release, plus industry-standard Dante® networking, the PLM 12K44 sets the benchmark for Powered Loudspeaker Management Systems.
The PLM 12K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.
PLM 20K44 BP
20,000 Watt Amplifier with 4 Flexible Output Channels on Binding Post Connectors, Lake Digital Signal Processing and Digital Audio Networking for Touring Applications
The PLM 20K44 Combines a 4-in, 4-out Configuration with Industry-standard Dante Networking, Setting the Benchmark for Powered Loudspeaker Management Systems.
The PLM 20K44 is the natural successor of the proven, road tested, and trusted Lab Gruppen touring foundation exemplified by the iconic PLM 20000Q. Now offering an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 20K44 sets the benchmark for Powered Loudspeaker Management Systems.
The PLM 20K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.
